Steel C Channel Purlin Roll Forming Machine

Brand Name : HC

Model Number : HC50

Certification : ISO

Place of Origin : Botou Hebei China

MOQ : 1set

Price : 15000-49000USD

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Supply Ability : 20 sets/month

Delivery Time : 30days

Packaging Details : Main machine is nude,the computer control box is packed by carton box.

Suitable material : Galvainzed steel

Usage : Roof purlin

Capacity : 8-10m/min

Punching : Yes

Thickness : 3mm

Worker : 1 only

Power : 11+7.5KW

Warranty : Whole life

Contact Now

Steel C Channel Purlin Roll Forming Machine
We are one of the leading organization occupied in providing brilliant quality Steel Channel C Purlin Roll Forming Machine, which are producing by using high grade material.we designed a lots kinds of Steel Channel C Purlin Roll Forming Machine. due to the high graded superiority and our client fulfillment,The product by Steel Channel C Purlin Roll Forming Machine has many benefit such as beautiful and colorful outside, light weigh, long life durability. It was widely used in every corn world wide. we can develop special Steel Channel C Purlin Roll Forming Machine as per customer requirement.



Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate: 175/465mm

3. Rollers: 13 rows

4. Dimensions: 6.7*1.35*1.51m

5. Power: 11+7.5kw

6. Rolling material: shaft bearing steel(quenching)

7. Thickness of the plate:1.5-3mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

Main parameters of Steel Channel C Purlin Roll Forming Machine

C shape purline Roll Forming Machine Main parameter

No.

   Main parameter of C Shape Purline Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

175/465mm

3

Rollers

13 rows

4

Dimensions

6.7*1.35*1.51m

5

Power

11+7.5kw

6

Rolling material

shaft bearing steel(quenching)

6

Thickness of the plate

1.5-3mm

7

Productivity

8-10m/min

8

Diameter of the roller

Φ80mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-leveling-roll forming machine-computer control system-hydraulic control system-punching-cutting

Application:

C purline formed by C purline forming machine,advantages of well compressive strength and flatness; automatioc measureing, cutting and punching; high-level of automation and conveniently installation.
It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.



Competitive Advantage



1. ISO certification

2. CE certification

3. PLC Panasonic

4. One year free warranty

5. Low loss, easy operate




Product Tags:

purlin roll forming machine



rolling forming machine


Buy cheap Steel C Channel Purlin Roll Forming Machine product

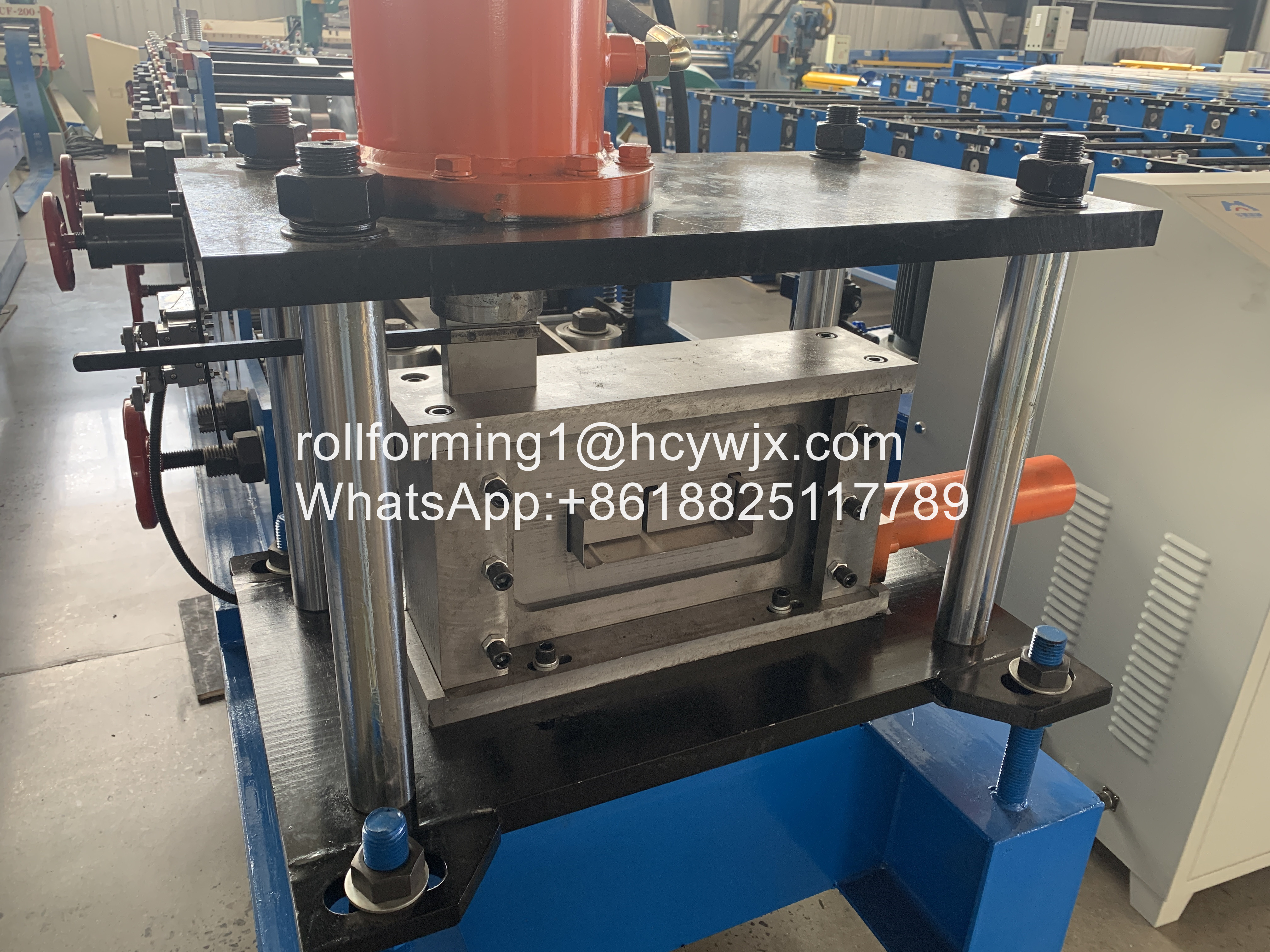

Steel C Channel Purlin Roll Forming Machine Images
