Steel Step Tile Making Machinery / Glazed Tile Cold Rolled Forming Machine

Cangzhou Huachen Roll Forming Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Steel Step Tile Making Machinery / Glazed Tile Cold Rolled Forming Machine

  • 1
  • 2

Brand Name : HC

Model Number : HC34

Certification : ISO

Place of Origin : Botou Hebei China

MOQ : 1set

Price : 12000-29000USD

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Supply Ability : 20 sets/month

Delivery Time : 30days

Packaging Details : Main machine is nude,the computer control box is packed by carton box

type : 1100mm russia type glazed step tile roofing panel roll forming machine

width : 1250

thickness : 0.3-0.6mm

capacity : 2-4m/min

Dimension : 7.5*1.5*1.2m

life time : 10 years

Weight : 6.5T

Contact Now

Steel Step tile making machinery/glazed tile cold rolled forming machine

Metal Panel Cold Roller Forming Equipment

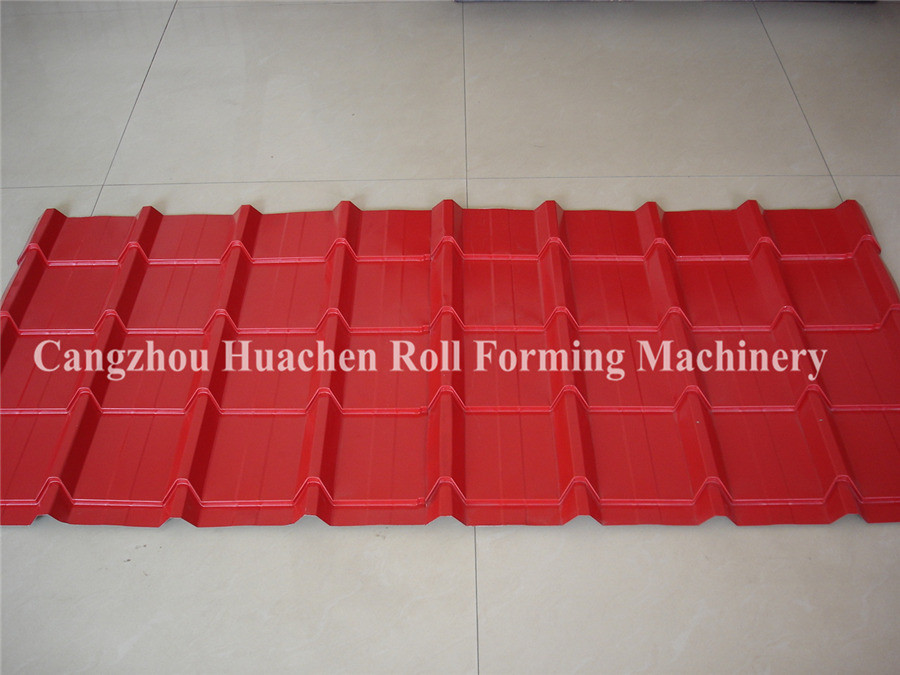

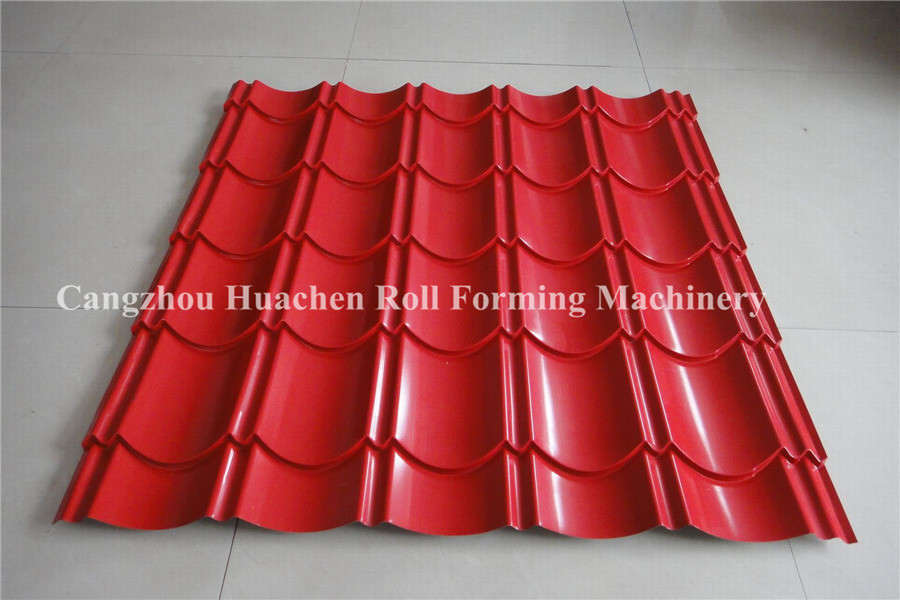

Glazed tile making machine, is used to produce glazed tile.

Machine components: glazed tile glazed tile making machine from the external structure to see by the loading frame, loading frame support, feed guide device, forming host, punching device, forming shear device, hydraulic station, computer control cabinet and other components.



We can also supply the customized machines.



Application for Roofing Tile Rollformer

The finished products are widely used in garden-like factories, tourist scenic spots, pavilions and pavilions, hotel villas, exhibition halls, resorts, resorts and so on. It has many advantages, such as beautiful scenery, Home and other architectural and outdoor decoration.

Material Width 1250mm
Rolling Speed

4-5m/min

(press step in 350mm, product length in 6m)

Rolling Thickness

0.4-0.6mm (235Mpa)

(Colored Steel plate)

Control System PLC (Panasonic)
Roller Stations About 16 stations
Diameter of Shaft ¢76mm solid shaft
Motor Power

Decoiler: 13KW

Main Power: 7.5KW servo motor

Hydraulic power: 11KW



Structure Guide pillar structure
Way Of Drive By chain, one complete chain

Our services

…………………………………………………………………………………………………………………………………………………………………………………



Provide Pre-sales Consultant & On-purchase service 8 hr × 6 days per week



1. Reply within 24 hours



2. Provide relevant product information



3. Answer questions if request



4. Give technical suggestion





Provide After-sales service 24hr × 7days per week



1. Test the machine before shipment



2. Provide technical guidance relate to use the machine



3. Supply one-year warranty period for the machine



4. Provide the spare parts at cost price after warranty period



5. Collect the feedback for the machine working
