Cold 3phases Metal Stud And Track Roll Forming Machine With Tracking Cut Off

Place of Origin : Botou Hebei China

Brand Name : HC

Certification : ISO

MOQ : 1set

Packaging Details : Main machine is nude,the computer control box is packed by carton box

Delivery Time : 30days

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Supply Ability : 20 sets/month

Material : galvanized steel

thickness : 0.5mm

speed : 25m/min

Feature : easy operation

Contact Now

Metal Stud and Track Cold Roll Forming Machine

Quick Detail:

1. Suitable to process: Color steel plate

2. Width of the plate:175mm

3. Rollers: 12rows

4. Dimensions: 6.1*1.15*1.51m

5. Power: 4.5+3kw

6. Rolling material: shaft bearing steel(quenching)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

Cold 3phases Metal Stud And Track Roll Forming Machine With Tracking Cut Off

Description:

Keel Roll Forming Machine Main parameter

No.	Main parameter of Keel Roll Forming Machine
1	Suitable to process	Color steel plate
2	Width of the plate	175 mm
3	Rollers	12 rows
4	Dimensions	610011501510mm
5	Power	4.5+3kw
6	Rolling material	shaft bearing steel(quenching)
7	Thickness of the plate	0.3-0.6 mm
8	Productivity	20m/min
9	Diameter of the roller	Φ50mm
10	Voltage	380V 50Hz 3phases
11	Material of the cutting plate	Cr12
12	Hydraulic	40#
13	Processing precision	Within 1.00mm
14	Control system	PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting

Competitive Advantage

1. CE certification

2 .ISO certification

3. working life 20 years

4. high quality steel

5. High efficiency

Cold 3phases Metal Stud And Track Roll Forming Machine With Tracking Cut Off

Product Tags:

cold metal stud and track roll forming machine

3phases metal stud and track roll forming machine

tracking cut off stud roll former

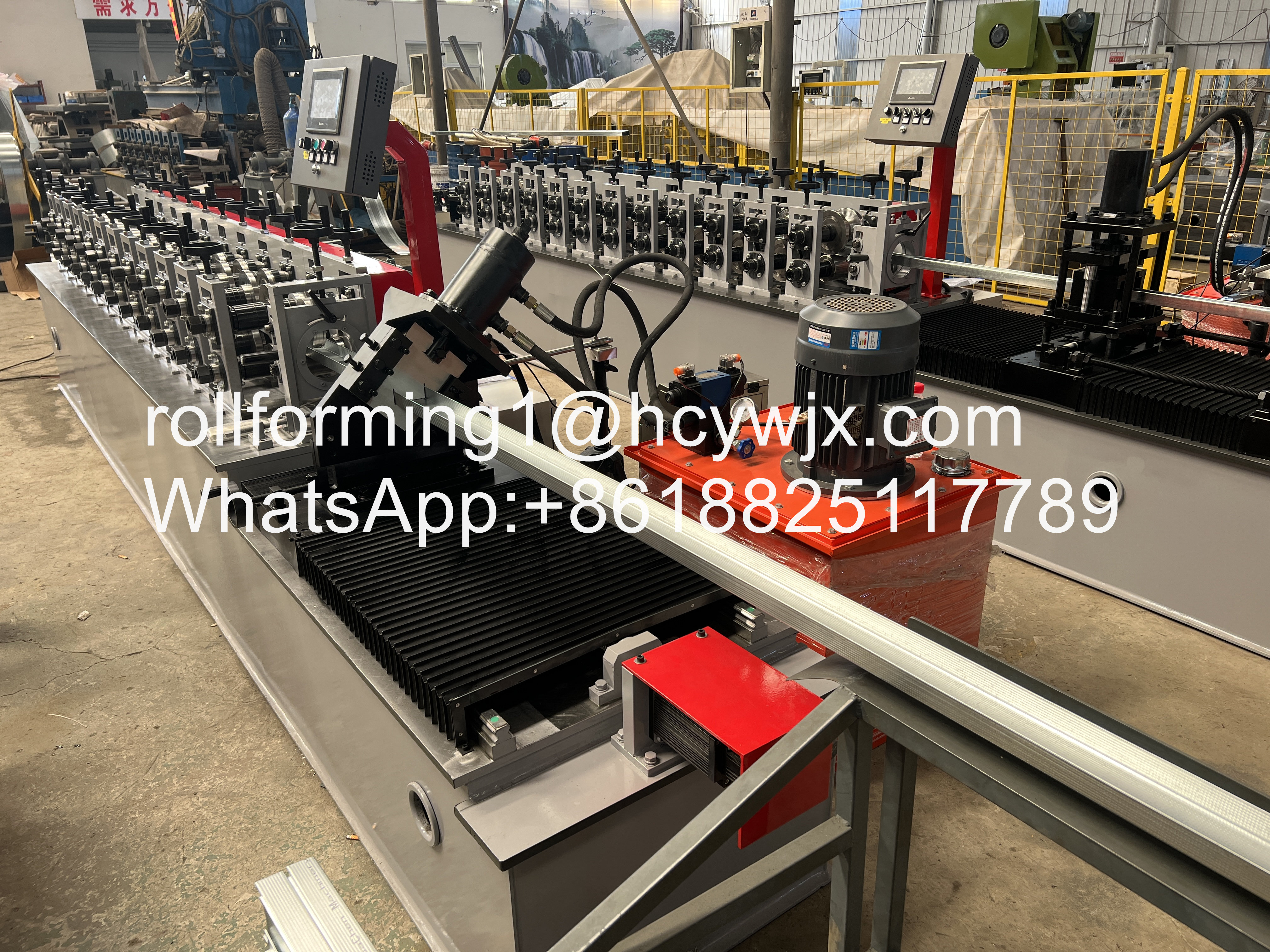

Cold 3phases Metal Stud And Track Roll Forming Machine With Tracking Cut Off Images
